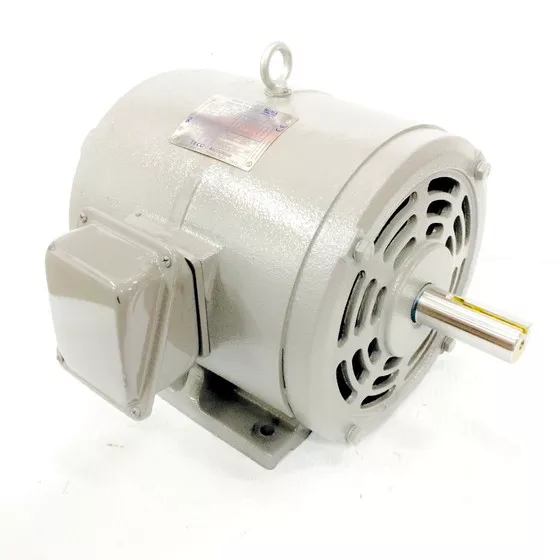

DHP0306G TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V ODP Cast Iron SGR 3-Phase Motor

Sale!
DHP0306G TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V ODP Cast Iron SGR 3-Phase Motor

DHP0306G TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V ODP Cast Iron SGR 3-Phase Motor

Original price was: $1,777.75.Current price is: $1,055.08.

55 in stock

SKU: DHP0306G Category:

Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 30 hp 1200 RPM, 71.9/35.9 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA 326T Frame, 5 1/4 x 2 1/8″ Dia. Keyed Shaft
  • Cast Iron Frame, Open Drip Proof
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

General purpose SGR motor for use on pumps, fans, and compressors. The SGR bearing protection ring resists bearing damage by diverting stray electric currents to ground.
